Windows Splunk UseCase Cheat Sheet

Found at the Malware Archeology

Critical Events to monitor

NEW PROCESS STARTING: Event Code 4688 will capture when a process or executable starts.
USER LOGON SUCCESS: Event Code 4624 will capture when a user successfully logons to the system.
SHARE ACCESSED: Event Code 5140 will capture when a user connects to a file share.
NEW SERVICE INSTALLED: Event Code 7045 will capture when a new service is installed.
NETWORK CONNECTION MADE: Event Code 5156 will capture when a network connection is made from the source to the destination including the ports used and the process used to initiate the connection. Requires the use of the Windows Firewall
FILE AUDITING: Event Code 4663 will capture when a new file is added, modified or deleted.
REGISTRY AUDITING: Event Code 4657 will capture when a new registry item is added, modified or deleted
WINDOWS POWERSHELL COMMAND LINE EXECUTION: Event Code 500 will capture when PowerShell is executed logging the command line used.
WINDOWS FIREWALL CHANGES: Event Code 2004 will capture when new firewall rules are added.
SCHEDULE TASKS ADDED: Event Code 106 will capture when a new scheduled task is added.

AUDIT THE REGISTRY USING THE SPLUNK UNIVERSAL FORWARDER (UF)

The Splunk UF allows you to monitor the Registry for Set, Create, Delete, and Renamed items to keys, values and
data. There are also Open, Close, and Query, but that would be way too noisy to monitor for.

https://docs.splunk.com/Documentation/Splunk/6.6.2/Data/MonitorWindowsregistrydata

Monitor the keys listed in the “Windows Registry Auditing Cheat Sheet” as a place to start and go from there.
[WinRegMon://HKCU]
index = workstation_win
sourcetype = "Win_Registry"
source = HKCU
disabled = 0
hive = \\REGISTRY\\USER\\.*\\Software\\Microsoft\\Windows\\CurrentVersion\\Run\\\\?.*
hive = \\REGISTRY\\USER\\.*\\Software\\Microsoft\\Windows\\CurrentVersion\\RunOnce\\\\?.*
hive = \\REGISTRY\\USER\\.*\\Software\\\\?.*
proc = .*
type = set|create|delete|rename
baseline = 1
baseline_interval = 120

[WinRegMon://HKLM]
index = workstation_win
sourcetype = "Win_Registry"
source = HKLM
disabled = 0
hive = \\REGISTRY\\MACHINE\\SYSTEM\\CurrentControlSet\\services\\\\?.*
hive = \\REGISTRY\\MACHINE\\Software\\Microsoft\\Windows\\CurrentVersion\\Run\\\\?.*
hive = \\REGISTRY\\MACHINE\\Software\\Microsoft\\Windows\\CurrentVersion\\RunOnce\\\\?.*
proc = .*
type = set|create|delete|rename
baseline = 1
baseline_interval = 120

Filter by Message, NOT by Event Code

It is common to blacklist event codes that are noisy or excessive that
impacts storage and licensing. By enabling Process Creation Success (4688) Process Terminate (4689) and Windows
Firewall Filtering Platform Connection Success (5156 & 5158) they will be the top four event codes in your Splunk
index. Filtering by the content of the Message or Field name is the better way to go. Once you understand what
normal noise is, has minimal risk to be exploited or important to security monitoring you can filter those out at the
client or server. For Windows, Splunk limits the blacklist to only 10 entries, so you will need to chain similar events
in one line. Here is an example of a proper exclusion:

[WinEventLog://Security]
disabled=0
current_only=1
blacklist = 4689,5158
blacklist1 = EventCode="4688" Message="(?:New Process
Name:).+(?:SplunkUniversalForwarder\\bin\\splunk.exe)|.+(?:SplunkUniversalForwarder\\bin\\splunkd.exe)|.+(?:Splunk
UniversalForwarder\\bin\\btool.exe)"
blacklist2 = EventCode="4688" Message="(?:New Process Name:).+(?:SplunkUniversalForwarder\\bin\\splunkwinprintmon.exe)|.+(?:SplunkUniversalForwarder\\bin\\splunkpowershell.exe)|.+(?:SplunkUniversalForwarder\\bin\\splunkregmon.exe)|.+(?:SplunkUniversalForwarder\\bin\\splunk-netmon.exe)|.+(?:SplunkUniversalForwarder\\bin\\splunkadmon.exe)|.+(?:SplunkUniversalForwarder\\bin\\splunkMonitorNoHandle.exe)|.+(?:SplunkUniversalForwarder\\bin\\splunkwinevtlog.exe)|.+(?:SplunkUniversalForwarder\\bin\\splunkperfmon.exe)|.+(?:SplunkUniversalForwarder\\bin\\splunk-wmi.exe)"
blacklist3 = EventCode="4688" Message="(?:Process Command Line:).+(?:--scheme)|.+(?:--no-log)|.+(?:-Embedding)"

BLACKLIST UNWANTED ITEMS USING THE SPLUNK UNIVERSAL FORWARDER

With the enhanced logging the other Windows Cheat Sheets recommend, there will unfortunately be a lot more events being generated, and noise. Many Event IDs or the Message within an Event ID do not provide any security value and therefore can be dropped versus being sent to Splunk taking up valuable licensing. The idea here is to blacklist or exclude items at the Universal Forwarder (UF) before they are sent to Splunk and take up some of your valuable license. Whitelisting is the opposite where you tell the UF only to collect certain items which is another option and works identically. If you cannot blacklist enough items in the UF and want to do more, you will need to use the Splunk Heavy Forwarder, or use another syslog agent like nxlog or the “Windows Logging Service” (WLS).

Limits:

There can only be 10 blacklist or whitelist items per sourcetype. This can be limiting for logs like the Security log that have tons of events and messages, many of which we do not need to collect. However there is the ability to nest multiple items within one blacklist item.

Format:

The format of the blacklist is RegEx, but not exactly the RegEx you may be used to. The following should provide
enough information and detail to build what you need. The first is a straight blacklist by Event ID:
- blacklist = 4689,5158

The next option is to nest multiple messages or parts of a message into one blacklist entry. The following will drop
some of the Splunk events from taking up space in Splunk, these are basically worthless events for security
purposes and are very noisy. Notice it is by Event ID, Message, and Type within the message (4688, Message, New
Process Name:)

- blacklist1 = EventCode="4688" Message="(?:New Process Name:).+(?:SplunkUniversalForwarder\\bin\\splunk.exe)|.+(?:SplunkUniversalForwarder\\bin\\splunkd.exe)|.+(?:SplunkUniversalForwarder\\bin\\btool.exe)"

The next item is nesting many more similar items, there are no spaces between the |:

- blacklist2 = EventCode="4688" Message="(?:New Process Name:).+(?:SplunkUniversalForwarder\\bin\\splunkwinprintmon.exe)
|.+(?:SplunkUniversalForwarder\\bin\\splunk-powershell.exe)
|.+(?:SplunkUniversalForwarder\\bin\\splunk-regmon.exe) |.+(?:SplunkUniversalForwarder\\bin\\splunknetmon.exe) |.+(?:SplunkUniversalForwarder\\bin\\splunk-admon.exe)
|.+(?:SplunkUniversalForwarder\\bin\\splunk-MonitorNoHandle.exe)
|.+(?:SplunkUniversalForwarder\\bin\\splunk-winevtlog.exe)|.+(?:SplunkUniversalForwarder\\bin\\splunkperfmon.exe)|.+(?:SplunkUniversalForwarder\\bin\\splunk-wmi.exe)

Monitor for process starting - 4688

Monitor for Suspicious/Administrative Processes: This list is based on built-in Windows administrative utilities and known hacking utilities that are often seen used in exploitation. expand this list as needed to add utilities used in hacking attacks. You do not need to alert on all processes launching, just suspicious ones or ones known to be used in hacking attacks. Some administrative tools are very noisy and normally used or automatically executed regularly
and should NOT be included to make your alert more actionable and accurate that something suspicious has occurred.

SAMPLE QUERY:
index=windows LogName=Security EventCode=4688 NOT (Account_Name=*$) (arp.exe OR at.exe OR bcdedit.exe OR bcp.exe OR chcp.exe OR cmd.exe OR cscript.exe OR csvde OR dsquery.exe OR ipconfig.exe OR mimikatz.exe OR btstat.exe OR nc.exe OR netcat.exe OR netstat.exe OR nmap OR nslookup.exe OR netsh OR OSQL.exe OR ping.exe OR powershell.exe OR powercat.ps1 OR psexec.exe OR psexecsvc.exe OR psLoggedOn.exe OR procdump.exe OR process.exe OR query.exe OR rar.exe OR reg.exe OR route.exe OR runas.exe OR rundll32 OR schtasks.exe OR sethc.exe OR sqlcmd.exe OR sc.exe OR ssh.exe OR sysprep.exe OR systeminfo.exe OR system32\\net.exe OR reg.exe OR tasklist.exe OR tracert.exe OR vssadmin.exe OR whoami.exe OR winrar.exe OR wscript.exe OR "winrm.*" OR "winrs.*" OR wmic.exe OR wsmprovhost.exe OR wusa.exe) | eval Message=split(Message,".")
| eval Short_Message=mvindex(Message,0)
| table _time, host, Account_Name, Process_Name, Process_ID, Process_Command_Line, New_Process_Name, New_Process_ID, Creator_Process_ID, Short_Message

SAMPLE QUERY: Trigger alert on 4th command executed (Best alert to catch malwarians on your system)
(index=win_servers OR index=win_workstations) LogName=Security EventCode=4688 [ | inputlookup InfoSec_Admin_Utils.csv
| fields New_Process_Name ] NOT (Some_server_name OR some_server_ip) NOT (Account_Name="-" OR Account_Name="*$") NOT (Process_Command_Line="some_command_you_trust" OR "some_other_cmd_you_trust")
| eval Message=split(Message,".")
| eval Short_Message=mvindex(Message,0)
| replace Server_Name with Descriptive_Name in host
| stats count values(host) AS Host values(Process_Command_Line) AS CMD_Line, values(New_Process_Name) AS New_Process_Name, values(Creator_Process_ID) AS Creator_Process_ID, values(New_Process_ID) AS New_Process_ID, values(Short_Message) AS Status by Account_Name
| where NOT isnull(CMD_Line) | where count > 3

Monitor for Whitelisting bypass attempts

Hackers will often use PowerShell to exploit a system due to the capability of PowerShell to avoid using built-in utilities and dropping additional malware files on disk. Watching for policy and profile bypasses will allow you to detect this hacking activity.

SAMPLE QUERY:
index=windows LogName=Security (EventCode=4688) NOT (Account_Name="Something_good") (iexec.exe OR InstallUtil.exe OR Regsrv32.exe OR Regasm.exe OR Regsvcs.exe OR MSBuild.exe)
| eval Message=split(Message,".")
| eval Short_Message=mvindex(Message,0)
| table _time, host, Account_Name, Process_Name, Process_ID, Process_Command_Line, New_Process_Name, New_Process_ID, Creator_Process_ID, Short_Message

Monitor for Logon Success

Logging for failed logons seems obvious, but when a user credential gets compromised and their credentials used for exploitation, successful logins will be a major indicator of malicious activity and system crawling. This alert looks for successful logons > 2 and excludes domain controllers to detect when a rogue user account crawls across systems in your network.

SAMPLE QUERY
index=windows LogName=Security EventCode=4624 NOT (host=“DC1" OR host=“DC2" OR host=“DC…”) NOT (Account_Name="*$" OR Account_Name="ANONYMOUS LOGON") NOT (Account_Name=“Service_Account")
| eval Account_Domain=(mvindex(Account_Domain,1))
| eval Account_Name=if(Account_Name="-",(mvindex(Account_Name,1)), Account_Name)
| eval Account_Name=if(Account_Name="*$",(mvindex(Account_Name,1)), Account_Name)
| eval Time=strftime(_time,"%Y/%m/%d %T")
| stats count values(Account_Domain) AS Domain, values(host) AS Host, dc(host) AS Host_Count, values(Logon_Type) AS Logon_Type, values(Workstation_Name) AS WS_Name, values(Source_Network_Address) AS Source_IP, values(Process_Name) AS Process_Name by Account_Name
| where Host_Count > 2

Monitor for Logon Failures

Watch for excessive logon failures, especially Internet facing systems and systems that contain confidential data. This will also detect brute force attempts and users who have failed to hanged their passwords on additional devices such as smartphones. You can add “stats count” to watch for quantity, exclude certain accounts you know are good and normally fail. Avoid excluding administrative accounts as they are the ones the hackers are after.

SAMPLE QUERY
index=windows LogName=Security EventCode=4625 | table _time, EventType, Workstation_Name, Source_Network_Address, host, Account_Name

SAMPLE QUERY (Brute forcing Administrator or Guest)
index=windows LogName=Security EventCode=4625 (Account_Name=administrator OR Account_Name=guest)
| stats count values(Workstation_Name) AS Workstation_Name, Values(Source_Network_Address) AS Source_IP_Address, values(host) AS Host by Account_Name
| where count > 5

Monitor for File Shares being accessed

Once a system is compromised, hackers will connect or jump to other systems to infect and/or to steal data. Watch for accounts crawling across file shares. Some management accounts will do this normally so exclude these to the systems they normally connect. Other activity from management accounts such as new processes launching will alert you to malicious behavior when excluded in this alert.

SAMPLE QUERY
index=windows source="WinEventLog:Security" EventCode=5140 (Share_Name="*\\C$" OR Share_Name="*D$" OR Share_Name="*E$" OR Share_Name="*F$" OR Share_Name="*U$") NOT Source_Address="::1"
| eval Destination_Sys1=trim(host,"1")
| eval Destination_Sys2=trim(host,"2")
| eval Dest_Sys1=lower(Destination_Sys1)
| eval Dest_Sys2=lower(Destination_Sys2)
| rename host AS Destination
| rename Account_Domain AS Domain
| where Account_Name!=Dest_Sys1
| where Account_Name!=Dest_Sys2
| stats count values(Domain) AS Domain, values(Source_Address) AS Source_IP, values(Destination) AS Destination, dc(Destination) AS Dest_Count, values(Share_Name) AS Share_Name, values(Share_Path) AS Share_Path by Account_Name

Monitor for New Service Installs

Monitoring for a new service install is crucial. Hackers often use a new service to
gain persistence for their malware when a system restarts. All the retail Point of Sale breaches included one or more new services that could have been easily detected with this alert alone.

SAMPLE QUERY
index=windows LogName=System EventCode=7045 NOT (Service_Name=mgmt_service)
| eval Message=split(Message,".")
| eval Short_Message=mvindex(Message,0) | table _time host Service_Name, Service_Type, Service_Start_Type, Service_Account, Short_Message

Monitor for Service State Changes

Monitoring for a service state changes can show when a service is altered.
Hackers often use an existing service to avoid new service detection and modify the ServiceDll to point to a malicious payload gaining persistence for their malware when a system restarts. Unfortunately the details are not in the logs, but this alert can lead you to look into a service state change or enable auditing on keys that trigger seldom used services to watch for ServiceDll changes. There are a few services that will normally start and stop regularly and will need to be excluded. Use registry auditing (4657) to monitor for changes to the ServiceDll value.

SAMPLE QUERY
index=windows LogName=System EventCode=7040 NOT (“*Windows Modules Installer service*” OR “*Background Intelligent Transfer Service service*”)
| table _time, host, User, Message

Monitor for Suspicious Network IP’s

This does require the use of the Windows Firewall. In networks where this is normally not used, you can use Group Policy to set the Windows Firewall to an Any/Any configuration so no blocking occurs, yet the traffic is captured in the logs and more importantly what process made the connection. You can create exclusions by IP addresses (such as broadcast IP’s) and by process names to reduce the output and make it more actionable. The “Lookup” command will benefit this query tremendously by excluding items.

SAMPLE QUERY
index=windows LogName=Security EventCode=5156 NOT (Source_Address="239.255.255.250" OR Source_Address="224.0.0.*" OR Source_Address="::1" OR Source_Address="ff02::*" OR Source_Address="fe80::*" OR Source_Address="255.255.255.255" OR Source_Address=192.168.1.255) NOT (Destination_Address="127.0.0.1" OR Destination_Address="239.255.255.250" OR Destination_Address="*.*.*.255" OR Destination_Address="224.0.0.25*") NOT (Destination_Port="0") NOT (Application_Name="\\\\" OR Application_Name="*\\bin\\splunkd.exe") | dedup Destination_Address Destination_Port
| table _time, host, Application_Name, Direction, Source_Address, Source_Port, Destination_Address, Destination_Port
| sort Direction Destination_Port

Monitor for New files

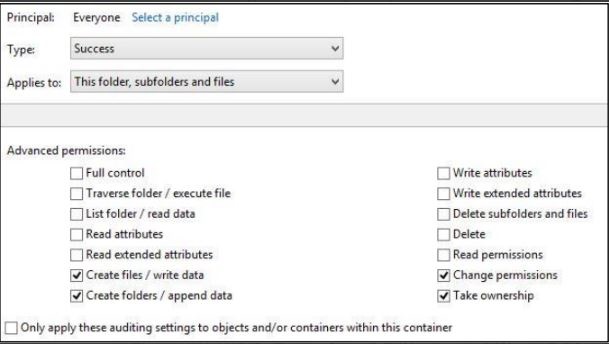

This requires directories and/or files to have auditing set on each object. You want to audit
directories that are well known for malware such as AppData\Local, LocalLow & Roaming as well as \Users\Public for the following:

SAMPLE QUERY
index=windows sourcetype=WinEventLog:Security EventCode=4663 NOT (Process_Name="*\\Windows\\servicing\\TrustedInstaller.exe" OR "*\\Windows\\System32\\poqexec.exe") NOT object_Name="C:\\Users\\Surf\\AppData\\Local\\Google\\Chrome\\User Data*" NOT Object_Name="C:\\Users\\\\AppData\\Roaming\\Microsoft\\Windows\\Recent\\CustomDestinations") NOT (Object_Name="C:\\Windows\\System32\\LogFiles\\*" OR Object_Name="*ProgramData\\Microsoft\\RAC\\*" OR Object_Name="*\\Microsoft\\Windows\\Explorer\\thumbcache*" OR Object_Name="*.MAP" OR Object_Name="*counters.dat" OR Object_Name="*\\Windows\\Gatherlogs\\SystemIndex\\*")
| rename Process_Name as Created_By
| table _time, host, Security_ID, Handle_ID, Object_Type, Object_Name, Process_ID, Created_By, Accesses

Monitor for Crypto/ransomware events

Setting auditing on a File Server Share will allow large amounts of file changes from a crypto event to be detected. Look at a large quantity of changes > 1000 in 1 hour to detect the event. Use the same settings as above as you only need to monitor for NEW files. It is obvious when an event occurs!

SAMPLE QUERY
index=windows LogName=Security EventCode=4663 host=* (Accesses="WriteData (or AddFile)" AND Object_Name="*.*") NOT (Security_ID="NT AUTHORITY\\SYSTEM") NOT (Object_Name="*\\FireFoxProfile\\*" OR
Object_Name="*.tmp*" OR Object_Name="*.xml" OR Object_Name="*Thumbs.db" OR Object_Name="\\Device\\HarddiskVolumeShadowCopy*") NOT (Object_Name="*:Zone.Identifier" OR Object_Name="*.part*")
| stats count values(Object_Name), values(Accesses) by Security_ID
| where count > 1000

Monitor for PowerShell Command Execution

Hackers will often use PowerShell to exploit a system due to the capability of PowerShell and to avoid using built-in utilities and drop additional malware on disk. Monitoring the PowerShell command lines that are executed can catching potentially malicious behavior. PowerShell logs have some odd formatting, the sample below shows a unique non-RegEx way to parse odd logs using the Splunk “split” command. PowerShell logs are the worst as far as using the “split” command. These logs are not in the standard Windows logs and will need to be added to your Splunk inputs.conf file in order to collect them. The “Windows PowerShell” logs may be found under:
Applications and Services Logs - Windows PowerShell

Monitor for Additions to Firewall Rules

Malware and hackers will often add a firewall rule to allow access to some Windows service or application. These logs are not in the standard Windows logs and will need to be added to
your Splunk inputs.conf file in order to collect them. The Windows firewall logs may be found under:
Applications and Services Logs – Microsoft - Windows – Windows Firewall with Advanced Security - Firewall

SAMPLE QUERY
index=windows LogName=Security EventCode=2004
| table _time, host, Rule_Name, Origin, Active, Direction, Profiles, Action, Application_Path, Service_Name, Protocol, Security_Options, Edge_Traversal, Modifying_User, Modifying_Application, Rule_ID

Monitor for PowerShell Obfuscation with 4688

Hackers will often use obfuscation of PowerShell code to hide what they are doing. Monitoring the Process Command Line executions can catch potentially malicious obfuscated PowerShell. The query below looks for and counts the amount of ticks, semicolons, and dollar signs to detect the use of PowerShell obfuscation using the Security log and Process Execution 4688 events with Process Command Line logging enabled.

SAMPLE QUERY
index=windows LogName="Security" EventCode=4688 NOT ("*ProgramData\\Some_Trusted\\Program*")
| eval Orig_Command=Process_Command_Line
| eval Clean_Command_Line=Process_Command_Line
| eval Obfuscations=Process_Command_Line
| rex field=Obfuscations mode=sed "s/[a-zA-Z0-9]//g"
| rex field=Clean_Command_Line mode=sed "s/[']//g"
| eval Tick_Count = mvcount(split(Obfuscations,"'"))-1
| eval Pct_Count = mvcount(split(Obfuscations,"%"))-1
| eval Dollar_Count = mvcount(split(Obfuscations,"$"))-1
| eval Plus_Count = mvcount(split(Obfuscations,"+"))-1
| eval SemiCol_Count = mvcount(split(Obfuscations,";"))-1
| table _time host, Orig_Command, Clean_Command_Line, Obfuscations, Tick_Count, Pct_Count, Dollar_Count, Plus_Count, SemiCol_Count
| where Tick_Count > 2

Monitor for PowerShell Obfuscation with 400

Hackers will often use obfuscation of PowerShell code to hide what they are doing. Monitoring the Process Command Line executions can catch potentially malicious obfuscated PowerShell. The query below looks for and counts the amount of ticks, semicolons, and dollar signs to detect the use of PowerShell obfuscation using the “Windows PowerShell” log (v2-v5) 400 events.
The “Windows PowerShell” logs may be found under:
Applications and Services Logs - Windows PowerShell

SAMPLE QUERY
index=powershell LogName="Windows Powershell" EventCode=400 | eval MessageA=split(Message,"Details:")
| Eval Short_Message=mvindex(MessageA,1) | eval MessageA=split(Short_Message,"HostVersion=")
| Eval MessageA=mvindex(MessageA,1)
| eval MessageB=split(MessageA,"HostId=")
| Eval PS_Version=mvindex(MessageB,0)
| Eval MessageC=mvindex(MessageB,1)
| eval MessageD=split(MessageC,"HostApplication=")
| Eval Host_ID=mvindex(MessageD,0)
| Eval MessageE=mvindex(MessageD,1)
| eval MessageF=split(MessageE,"EngineVersion=")
| Eval Host_Application=mvindex(MessageF,0)
| Eval MessageG=mvindex(MessageF,1)
| eval MessageH=split(MessageG,"RunspaceId=")
| Eval Engine_Version=mvindex(MessageH,0)
| Eval MessageJ=mvindex(MessageH,1)
| eval MessageP=split(MessageJ,"CommandLine=")
| Eval Command_Line=mvindex(MessageP,1)
| eval Obfuscations=Host_Application
| rex field=Obfuscations mode=sed "s/[a-zA-Z0-9]//g"
| rex field=Clean_Host_Application mode=sed "s/ [^a-zA-Z0-9_]==/ /g"
| eval Tick_Count = mvcount(split(Obfuscations,"'"))-1
| eval Pct_Count = mvcount(split(Obfuscations,"%"))-1
| table host, ComputerName, Host_Application, Clean_Host_Application, Obfuscations, Tick_Count, Pct_Count
| where Tick_Count > 2

Monitor for PowerShell Obfuscation with 4104 or 400

Hackers will often use obfuscation of PowerShell code to hide what
they are doing. Monitoring the size of the PowerShell commands that hide things like Base64 encoded scripts can catch
potentially malicious obfuscated PowerShell. The query below looks for the size of a scriptblock over 1000 characters using
the “PowerShell/Operation” or “Windows PowerShell” log. The “Windows PowerShell” and “PowerShell Operational” logs
may be found under:
- Applications and Services Logs - Windows PowerShell
- Applications and Services Logs – PowerShell/Operational

SAMPLE QUERY
index=powershell (source="WinEventLog:Microsoft-Windows-PowerShell/Operational" OR source="WinEventLog:Windows PowerShell") (EventCode=4104 OR EventCode=400) NOT ("*Some_Trusted \\Program*") NOT ("*InvocationName*" OR "*InvocationInfo*")
| eval Cmd_Length=len(Message)
| where Cmd_Length > 1000
| table _time, host, EventCode, Cmd_Length, Message
