UserAssist

inspired and sourced by https://www.sans.org/security-resources/posters/windows-forensic-analysis/170/download

Description

GUI-based programs launched from the desktop are tracked in the launcher on a Windows System.

Location
NTUSER.DAT HIVE: NTUSER.DAT\Software\Microsoft\Windows\Currentversion\Explorer\UserAssist\ {GUID}\Count
Interpretation
All values are ROT-13 Encoded

>>> s = "HRZR_EHACNGU:P:\Qbphzragf naq Frggvatf\haxabja\Ohernh\argjbex-gnfxznantre.rkr"
>>> s.decode("rot13")
u'UEME_RUNPATH:C:\\Documents and Settings\\unknown\\Bureau\x07etwork-taskmanager.exe'


GUID for XP
- 75048700 Active Desktop
GUID for Win7/8/10
- CEBFF5CD Executable File Execution
- F4E57C4B Shortcut File Execution

Use volatility:
python vol.py -f ~/memdump/infected.img userassist

Further readings:

Windows 10 Timeline

inspired and sourced by https://www.sans.org/security-resources/posters/windows-forensic-analysis/170/download

Description

Win10 records recently used applications and files in a “timeline” accessible via the “WIN+TAB” key. The data is recorded in a SQLite database and (only) stored for the past 30 days of activity.

Location
C:\Users\\AppData\Local\ConnectedDevices Platform\L.\ActivitiesCache.db

The catalog Users\%profile name%\AppData\Local\ConnectedDevicesPlatform\ contains a CDP file with information about the last Windows 10 Timeline synchronization with the cloud (CNCNotificationUriLastSynced) and about the user ID

Interpretation
• Application execution • Focus count per application

ActivitiesCache.db contains the following tables: Activity, Activity_PackageId, ActivityAssetCache, ActivityOperation, AppSettings, ManualSequence, and Metadata. The ones that hold the most interest for investigators are Activity_PackageId and Activity.

The records in the Activity_PackageId table are stored for 30 days and can contain information about executable files or documents that are no longer present on the hard drive.

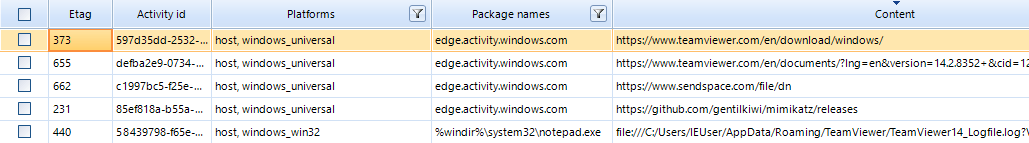

Sample:

As can be seen in the screenshot, the attackers installed TeamViewer (a file from a file sharing website called sendspace.com) and Mimikatz on the victim's computer. An analysis of the events stored in Windows 10 Timeline indicates that the attackers opened TeamViewer logs (TeamViewer14_Logfile.log) via Notepad (notepad.exe). They may have done this to delete or modify the file information.

Further readings:

Windows 10 RecentApps

inspired and sourced by https://www.sans.org/security-resources/posters/windows-forensic-analysis/170/download

Description

GUI Program execution launched on the Win10 system is tracked in the RecentApps key

Location
NTUSER.DAT\Software\Microsoft\Windows\Current Version\Search\RecentApps

Interpretation
Each GUID key points to a recent application.
AppID = Name of Application
LastAccessTime = Last execution time in UTC
LaunchCount = Number of times executed

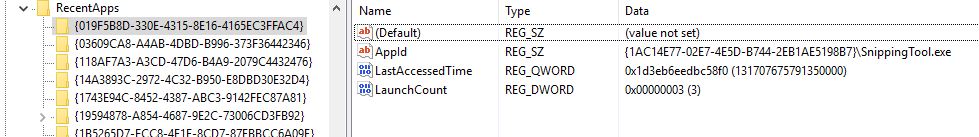

Sample:

Further readings:

Shimcache

inspired and sourced by https://www.sans.org/security-resources/posters/windows-forensic-analysis/170/download

Description

Windows Application Compatibility Database is used by Windows to identify possible application compatibility challenges with executables.
It tracks the executables file name, file size, last modified time, and in Windows XP the last update time .

From reading Andrew Davis' whitepaper "Leveraging the Application Compatibility Cache in Forensic Investigations", we know each time an application with unique metadata is executed, a corresponding Shimcache entry will be created. In other words, new entries are created when an existing file’s metadata has changed and is re-executed.

Location
XP: SYSTEM\CurrentControlSet\Control\SessionManager\AppCompatibility
Win7/8/10: SYSTEM\CurrentControlSet\Control\Session Manager\AppCompatCache

Interpretation
Any executable run on the Windows system could be found in this key. You can use this key to identify systems that specific malware was executed on. In addition, based on the interpretation of the time-based data you might be able to determine the last time of execution or activity on the system.
Windows XP contains at most 96 entries
LastUpdateTime is updated when the files are executed
Windows 7 contains at most 1,024 entries
LastUpdateTime does not exist on Win7 systems



Further readings:

Jump List

inspired and sourced by https://www.sans.org/security-resources/posters/windows-forensic-analysis/170/download

Description

The Windows 7 task bar (Jump List) is engineered to allow users to “jump” or access items they have frequently or recently used quickly and easily. This functionality cannot only include recent media files; it must also include recent tasks.
The data stored in the AutomaticDestinations folder will each have a unique file prepended with the AppID of the associated application.

The AutomaticDestinations files are the OLE files, so you can analyze them with oledump.

Location
Win7/8/10: C:\%USERPROFILE%\AppData\Roaming\Microsoft\Windows\Recent\AutomaticDestinations

Interpretation
First time of execution of application.
- Creation Time = First time item added to the AppID file.
Last time of execution of application w/file open.
- Modification Time = Last time item added to the AppID file.

List of Jump List IDs -> http://www.forensicswiki.org/wiki/List_of_Jump_List_IDs



Further readings:

Amcache.hve

inspired and sourced by https://www.sans.org/security-resources/posters/windows-forensic-analysis/170/download

Description

ProgramDataUpdater (a task associated with the Application Experience Service) uses the registry file Amcache.hve to store data during process creation

Location
Win7/8/10: C:\Windows\AppCompat\Programs\Amcache.hve

Interpretation
Amcache.hve – Keys = Amcache.hve\Root\File\{Volume GUID}\#######
Entry for every executable run, full path information, File’s $StandardInfo Last Modification Time, and Disk volume the executable was run from
First Run Time = Last Modification Time of Key
SHA1 hash of executable also contained in the key

Frequency Analysis Review: Amcache

Here is a summary of the steps so far using the DFIR host:

  1. Gather up amcache hives
  2. Run RegRipper on all amcache hives. Make sure to use the modified version of the plugin.
    Windows:

    find {directory with amcache hives} -print -exec rip.exe -r {} -p amcache_tln ; > appcache{datetime}.txt

    *NIX:

    find {directory with amcache hives} -print -exec rip.pl -r {} -p amcache_tln \; > appcache{datetime}.txt

  3. Cut out the SHA1 hashes and run them against the NSRL/MSDN/Review/Whitelist databases to remove known good hashes.
    1. cut -f8 -d\| amcache{datetime}.txt | sort | uniq | grep -v amcache | sed '/^[[:space:]]*$/d' | grep -v -i "plugins" > amcache{datetime}.sha

    2. ./ir_distill_v0.3.py --nsrl ./nsrl.db --reviewlist ./whitelist.db ./msdn.db --file ./amcache{datetime}.sha --out amcache{datetime}_shareview —ignorecase

    3. cut -d\| -f6 amcache{datetime}_shareview _match.csv | sort | uniq -c

  4. Cut out the directory path and filename, sort them, and unique them for frequency analysis<\li>

    grep -f amcache{datetime}.shareview_nomatch.txt| cut -f7 -d\| | sort | uniq -c | sed -e 's/^[ \t]*//' | sort -t" " -k2 > amache{datetime}_freq.txt

  5. Reduce output with IR Distill

    ./ir_distill_v0.3.py -f ./os.sqlite --showallmatches --ignorecase -i amache{datetime}_freq.txt -o amcache_{datetime}_distill2

  6. Review "amcache_{datetime}_distil_nomatch.txt" file
  7. Review the binaries
    1. Pull binaries from source machines
    2. Run hashes through VT
    3. Malware analysis of binaries



Further readings:



SRUM - System Resource Usage Monitor

inspired and sourced by https://www.sans.org/security-resources/posters/windows-forensic-analysis/170/download

Description

Records 30 to 60 days of historical system performance. Applications run, user account responsible for each, and application and bytes sent/received per application per hour.

Location
SOFTWARE\Microsoft\WindowsNT\CurrentVersion\SRUM\Extensions {d10ca2fe-6fcf4f6d-848e-b2e99266fa89} = Application Resource Usage Provider C:\Windows\ System32\SRU\

Interpretation

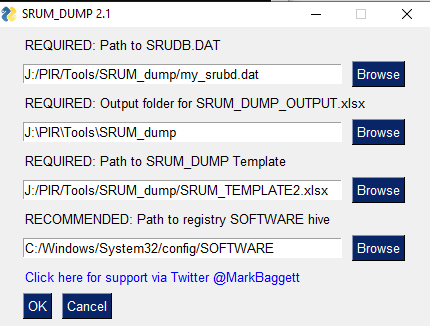

Use tool such as srum_dump.exe to cross correlate the data between the registry keys and the SRUM ESE Database.

Further readings:



SRUM - System Resource Usage Monitor

inspired and sourced by https://www.sans.org/security-resources/posters/windows-forensic-analysis/170/download

Description

Windows 10 Background Activity Moderator (BAM)

Location
Win10: SYSTEM\CurrentControlSet\Services\bam\UserSettings\{SID} SYSTEM\CurrentControlSet\Services\dam\UserSettings\{SID}

Interpretation
Provides full path of the executable file that was run on the system and last execution date/time

Further readings:

Startup Type

Windows 10 version

Home

Pro

Education

Enterprise

1507

not exists

not exists

not exists

not exists

1511

not exists

not exists

not exists

not exists

1607

not exists

not exists

not exists

not exists

1703

not exists

not exists

not exists

not exists

1709

System

System

System

System

1803

System

System

System

System

1809

System

System

System

System

1903

System

System

System

System

1909

System

System

System

System


MRU - Last visited or MostRecentlyUsed

inspired and sourced by https://www.sans.org/security-resources/posters/windows-forensic-analysis/170/download

Description

Tracks the specific executable used by an application to open the files documented in the OpenSaveMRU key. In addition, each value also tracks the directory location for the last file that was accessed by that application. Example: Notepad.exe was last run using the C:\%USERPROFILE%\ Desktop folder

Location
XP:
NTUSER.DAT\Software\Microsoft\Windows\CurrentVersion\Explorer\ComDlg32\LastVisitedMRU
Win7/8/10:
NTUSER.DAT\Software\Microsoft\Windows\CurrentVersion\Explorer\ComDlg32\LastVisitedPidlMRU
NTUSER.DAT\Software\Microsoft\Windows\CurrentVersion\Explorer\RecentDocs
NTUSER.DAT\Software\Microsoft\Windows\CurrentVersion\Explorer\RunMRU

Interpretation
Tracks the application executables used to open files in OpenSaveMRU and the last file path used.

RunMRU: Any program launched from Start>Run command can also be used to see what programs the user has launched via this route. These entries get logged under HKEY_CURRENT_USER\Software\Microsoft\Windows\CurrentVersion\Explorer\RunMRU, and there will be a list of all the programs launched from Run.It will also contain an MRULISt which will show the order of these with the first entry being the most recent.

Further readings:






Prefetch

inspired and sourced by https://www.sans.org/security-resources/posters/windows-forensic-analysis/170/download

Description

Increases performance of a system by pre-loading code pages of commonly used applications. Cache Manager monitors all files and directories referenced for each application or process and maps them into a .pf file.
Utilized to know an application was executed on a system.
Limited to 128 files on XP and Win7
Limited to 1024 files on Win8
(exename)-(hash).pf

Location
WinXP/7/8/10: C:\Windows\Prefetch

Interpretation
Each .pf will include last time of execution, number of times run, and device and file handles used by the program.

Plesae keep in mind that although each parameter will create a new PF-entry, the actual parameter will not be retrievable.

Date/Time file by that name and path was first executed
Creation Date of .pf file (-10 seconds)

Date/Time file by that name and path was last executed
Embedded last execution time of .pf file
Last modification date of .pf file (-10 seconds)
Win8-10 will contain last 8 times of execution

Further readings:
